Understanding Aeroderivative Gas Turbine Vibration Probes: Their Role, Importance, and Spare Parts Advantage
Introduction
In the world of industrial gas turbines, particularly the aeroderivative gas turbine , vibration monitoring is not just important, it’s essential. The aeroderivative engine requires precision health monitoring to prevent costly shutdowns and ensure optimal performance. At the heart of this monitoring system lies a key component: the vibration probe (or accelerometer transducer).
What Are Vibration Probes?

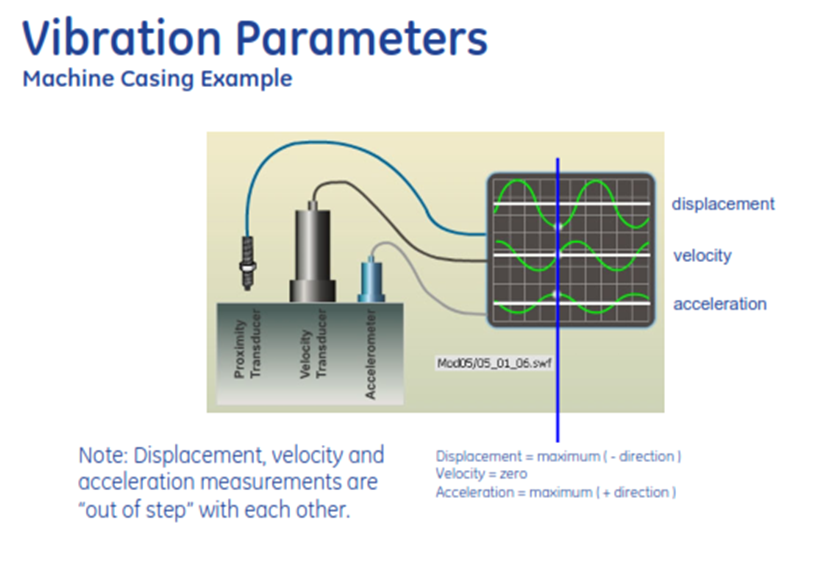

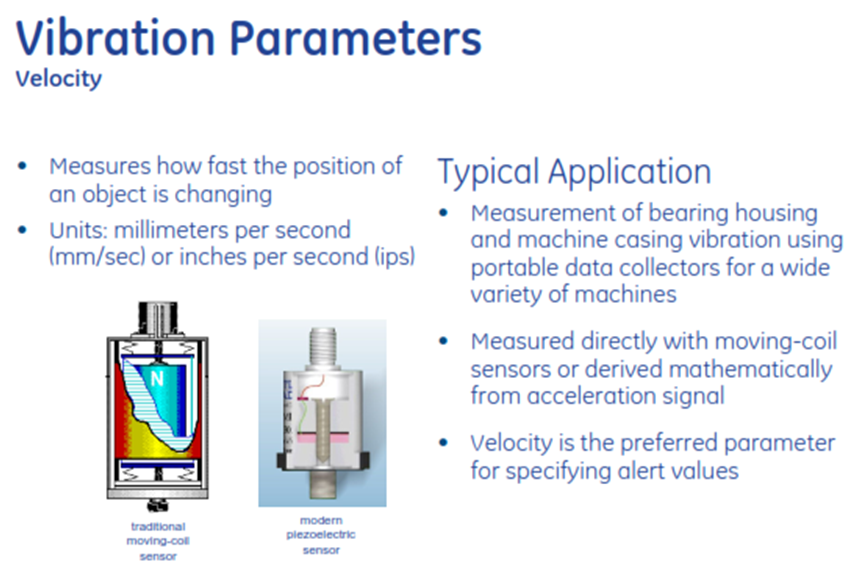

A vibration probe or accelerometer, such as the BNC 45357-03 or Endevco 303-02, is a transducer that converts mechanical vibration into an electrical signal. In the aeroderivative gas turbine , these sensors are essential for measuring both low-pressure (LP) and high-pressure (HP) rotor vibrations across a frequency band of 25–350 Hz. Each turbine is equipped with modules like the 86517 Accel Interface Module, providing filtered and unfiltered outputs at sensitivities of 10 mV/g and 100 mV/in/s respectively.
Why Vibration Monitoring Matters
According to OEM the best practices, vibration data enables:
– Real-time protection: Rapid trip signals (within 100 ms) can shut down machines during blade-loss or imbalance events.
– Condition-based maintenance: Early detection of trends allows for predictive and proactive servicing, avoiding unplanned outages.
– Health diagnostics: Unfiltered acceleration data supports root cause analysis and troubleshooting.
Failure to monitor or replace faulty probes can result in false trips or missed faults, leading to unnecessary downtime or catastrophic failures.
Importance in Aeroderivative Gas turbine

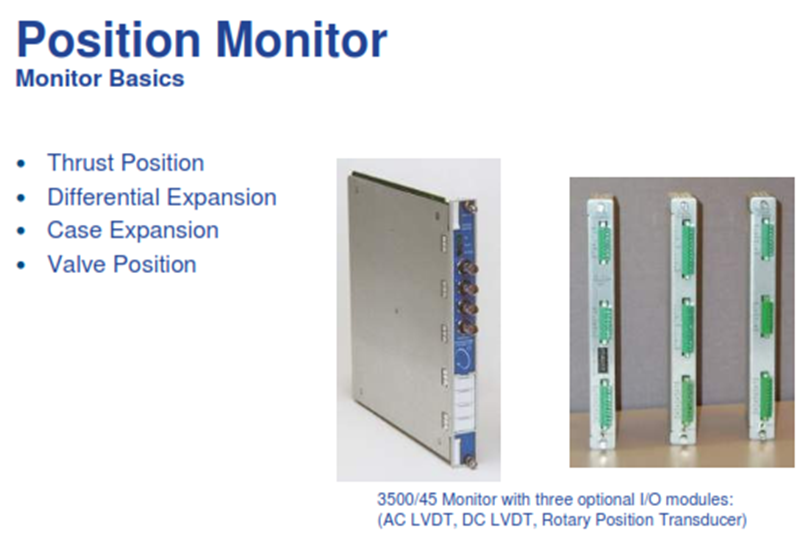

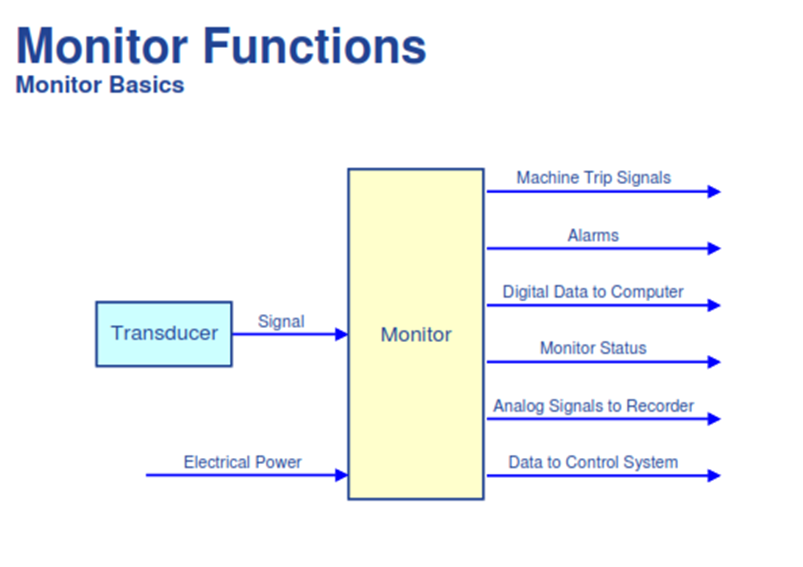

In Aero derivative turbines are used in both land-based power generation and marine propulsion. These units operate under dynamic conditions, making vibration analysis even more critical. They monitors filtered wideband vibrations and rotor-specific frequencies (1X HP and 1X LP), with outputs feeding into a 3500/44M Monitor or 3500/42M for real-time diagnostics.
Advantages of Using Quality Spare Parts
Your choice of replacement parts can significantly impact machine health. Here’s how:
1. Reduced Nuisance Alarms: Upgraded probes (e.g., replacing L31967P01 with P18 or P03 models) mitigate high-frequency noise from blade-passing frequencies, avoiding false shutdowns.
2. Improved Accuracy: Newer probes have tighter calibration tolerances and improved shielding against electromagnetic interference.
3. Longer Operational Life: High-quality HTVS transducers like the 330750 operate reliably in high-temperature environments (up to 260°C), common in retrofit LM6000 units.
4. System Compatibility: OEM-equivalent probes and interface modules ensure seamless integration with GE’s monitoring systems (e.g., 3300/95, 3500/44M).
5. Reduced Maintenance Costs: Condition-based monitoring reduces unplanned interventions, extending overhaul intervals and reducing overall maintenance costs.
The Spare Parts Supplier Advantage
As a dedicated supplier of Aeroderivative vibration monitoring components, we offer:
– OEM-spec sensors like BNC 45357-03 and 86517 interface modules
– Retrofit solutions with HTVS probes and 139506 interface modules
– Full kits for system upgrades and on-site installations
– Expert consultation on replacing legacy monitoring systems (3300 series to 3500 series)
Conclusion
The vibration probe may seem like a small component in a complex turbine system, but its function is critical. For any aeroderivative gas turbine users, ensuring the integrity of these sensors is a matter of operational safety, maintenance efficiency, and cost control. By choosing the right spare parts—backed by technical expertise and proven quality—you ensure the reliability of your entire system.
Let us help you keep your aeroderivative gas turbines running stronger, longer.
