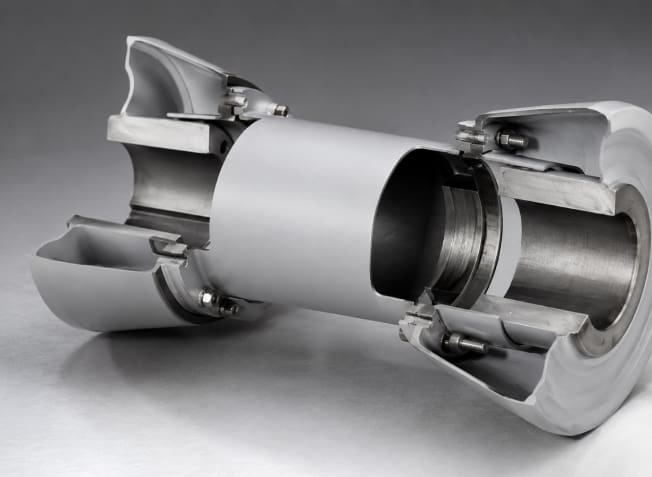

317715401 Coupling Guard Assy: Purpose, Function, and Applications

The 317715401 Coupling Guard Assy is a protective component that covers and shields rotating coupling components in industrial turbine equipment. Its main purpose is to reduce accidental contact with moving components and support safer machinery operation. When used with compatible GE TM/LM 2500 equipment, the correct coupling guard assembly helps maintain the intended equipment configuration and provides reliable protection around the coupling area.

What Is a 317715401 Coupling Guard Assy?

A 317715401 Coupling Guard Assembly is a mechanical protection component installed around a rotating coupling. A coupling connects two shafts and transfers mechanical power from one rotating component to another. Because the coupling moves while the equipment is operating, leaving it exposed can create a potential mechanical hazard.

The guard provides a physical barrier between the rotating coupling and people working around the equipment. It is therefore an important part of the overall equipment safety arrangement.

While a coupling guard is primarily a protective component, its design must also work with the surrounding machinery. The correct size, mounting arrangement, and configuration are important for proper installation.

What Does the 317715401 Coupling Guard Do?

The primary function of the 317715401 Coupling Guard is to protect the coupling area from accidental contact while the machinery is running.

Its key functions include:

• Covering exposed rotating coupling components
• Creating a physical barrier around moving parts
• Reducing the possibility of accidental contact
• Supporting safer inspection and maintenance work
• Helping protect the coupling area from outside interference
• Maintaining the intended machinery configuration

However, the guard is only one part of a complete equipment safety system. Operators and maintenance personnel should also follow the appropriate safety procedures, lockout requirements, and equipment instructions.

Why Is a Coupling Guard Assembly Important?

Rotating equipment can operate at high speeds and transfer considerable mechanical power. As a result, exposed couplings and shafts can present serious hazards to personnel working nearby.

An appropriately fitted coupling guard assembly helps separate workers from the rotating components. This simple physical barrier can make a significant difference when machinery is operating or when personnel are working around the equipment.

In addition, properly guarding the coupling helps maintain the machinery’s original safety arrangement.

That’s why a damaged or incorrectly fitted guard should not simply be ignored. Cracks, bends, missing fasteners, corrosion, or loose mounting points can affect the guard’s ability to provide the intended protection.

Where Is the 317715401 Coupling Guard Used?

The 317715401 component is associated with GE TM/LM 2500 turbine equipment. The GE TM/LM 2500 platform is used in demanding applications, including power generation and marine propulsion.

Depending on the specific equipment configuration, coupling guards can be found in applications such as:

• Gas turbine systems
• Power generation equipment
• Industrial rotating machinery
• Mechanical drive systems
• Marine propulsion systems
• Turbine-related assemblies

Because turbine systems can have different configurations, the exact application of a particular part should always be confirmed using the appropriate equipment documentation and part information.

What Are the Benefits of an Industrial Coupling Guard?

An Industrial Coupling Guard provides several practical benefits for turbine and rotating machinery applications.

Improved Personnel Protection

The most important benefit is the physical barrier it creates around rotating components. This helps reduce the possibility of accidental contact while equipment is operating.

Better Equipment Protection

The guard can also help protect the coupling area from unintended interference. Keeping the area properly covered supports the overall condition of the assembly.

Safer Maintenance

Maintenance teams regularly work around large mechanical systems. A properly installed guard helps establish a safer working environment around rotating components.

Proper Equipment Configuration

Using the correct component helps maintain the equipment’s intended configuration. This is particularly important for turbine systems where individual parts are designed for specific applications.

How Do You Know When a Coupling Guard Needs Replacement?

A coupling guard should be inspected as part of the equipment’s regular maintenance program. Certain visible conditions may indicate that replacement or further assessment is needed.

Look for signs such as:

• Cracks or breaks
• Bent or distorted sections
• Excessive corrosion
• Loose mounting hardware
• Missing fasteners
• Unusual movement
• Improper alignment or positioning
• Signs of impact or physical damage

If the guard is damaged, continuing to use it without proper assessment may compromise the intended protection.

A Coupling Guard Replacement should match the equipment and application. Choosing a component based solely on its appearance is not enough, as two guards may look similar yet have different dimensions or mounting arrangements.

What Should You Check Before Ordering a Replacement?

Before ordering a replacement 317715401 Coupling Guard, it is helpful to gather the relevant equipment information first. This can make the identification process easier and reduce the possibility of ordering the wrong component.

1. Confirm the Part Number

First, verify that 317715401 is the required part number. Equipment records, technical documents, and the existing component may help confirm this information.

2. Verify the Equipment Model

Next, confirm the turbine or machinery model for which the guard is required. This helps ensure that the component is suitable for the specific equipment configuration.

3. Check the Application

It is also important to understand where the guard is installed and which coupling or shaft assembly it protects.

4. Review Compatibility

Before installation, make sure the replacement matches the required dimensions, mounting points, and equipment configuration.

5. Choose a Reliable Supplier

If the part information is unclear, working with an experienced turbine parts supplier can make identification and sourcing much easier.

By taking these steps, you can reduce ordering errors and potentially avoid unnecessary equipment downtime.

How Can a Turbine Parts Specialist Help?

Sourcing turbine components can be challenging when a system requires a specific part number. Turbine Parts Specialist provides turbine replacement parts for equipment and applications associated with GE TM/LM 2500 systems.

If you are looking for a 317715401 Coupling Guard Assy, having the part number and relevant equipment information ready can make the sourcing process more straightforward.

The company can also be a resource when you need to identify turbine components for power generation, marine, or other industrial applications.

What Is the Difference Between a Coupling Guard and Coupling Protection Assembly?

The terms “coupling guard assembly” and “coupling protection assembly” may sometimes be used to describe similar protective equipment. However, they do not necessarily refer to the same specific part.

Term	General Purpose
317715401 Coupling Guard Assy	Specific component for a particular application
Coupling Guard Assembly	Protective assembly around a rotating coupling
Industrial Coupling Guard	General term for industrial coupling protection
Coupling Protection Assembly	Broader description of components used for coupling protection

The important point is to verify the exact part number and equipment compatibility before selecting a replacement.

Summary

The 317715401 Coupling Guard Assy plays an important protective role around rotating coupling components used in industrial turbine equipment. By creating a barrier around moving parts, it supports safer operation and helps maintain the machinery’s intended configuration.

If the existing guard is damaged or requires replacement, accurate part identification is essential. Confirm the part number, equipment model, application, and compatibility before ordering.

For GE TM/LM 2500-related components and other turbine parts, Turbine Parts Specialist can help you find the right solution for your equipment requirements.
